HappiJac Slide-Outs
Industry-Leading RV Slide-Outs
HappiJac Secure-Trac™ fixed-frame slide mechanisms are perfect for above-floor applications, featuring an ultra-low profile that optimizes living and storage space. Factory assembled with a pre-squared frame and quick timing adjustment, these floor-mounted slides allow for easy installation and alignment.
HappiJac Slide-out Applications
Bedroom Slides
Dinette Slides
Entertainment Slides
Wardrobe Slides

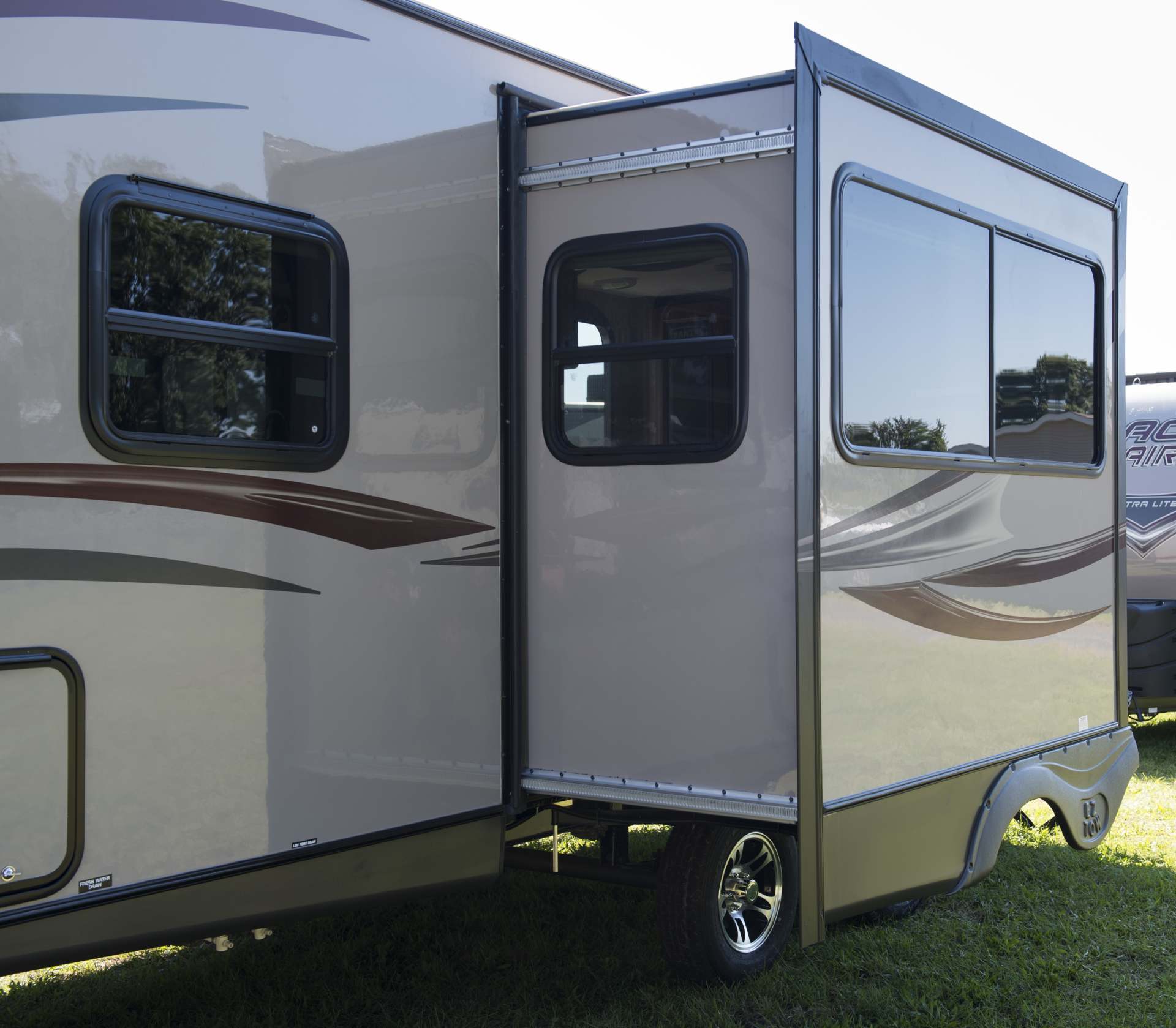

Room Slides
Secure-Trac™ Slide-Out Features & Benefits
Standard Features
Ultra-Low Space-Saving Profile
Easy Installation & Alignment
HappiJac Room Slide Configuration Options

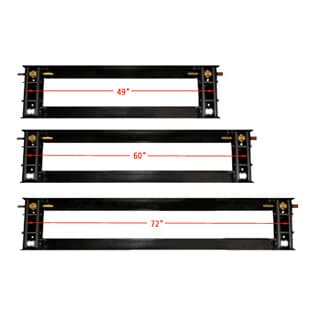

Frame Width Options
Frame Depth Options

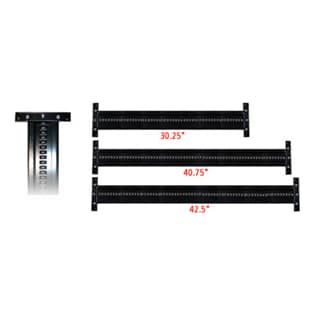

Rail Length Options

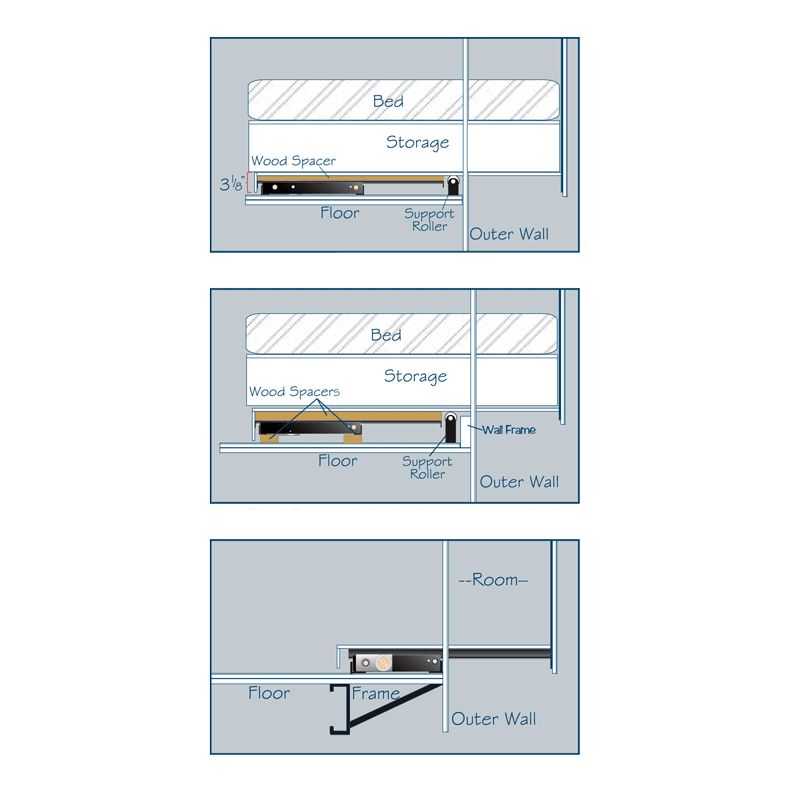

HappiJac Slide-Out Installation Quick Guide
Step 1. Initial Alignment
Place the pre-squared frame of the HappiJac room slides on the floor and align it with the outer wall.
Step 2. Bolt to Floor & Wall
Once squared with the outer wall, bolt room slide to the floor and attach to the outer wall, then secure the support structure for the moving floor to the extension rams.
Step 3. Fine Tune Timing
Pull and hold the spring-loaded drive shaft to disengage the motor and manually advance or retract each rail's drive mechanism independently, with one turn moving the mechanism 1/8"
Step 4. Hook Up Wiring
Connect the wiring according to the provided diagram instructions, ensuring the slide is properly connected to the power source and the operation switch.
